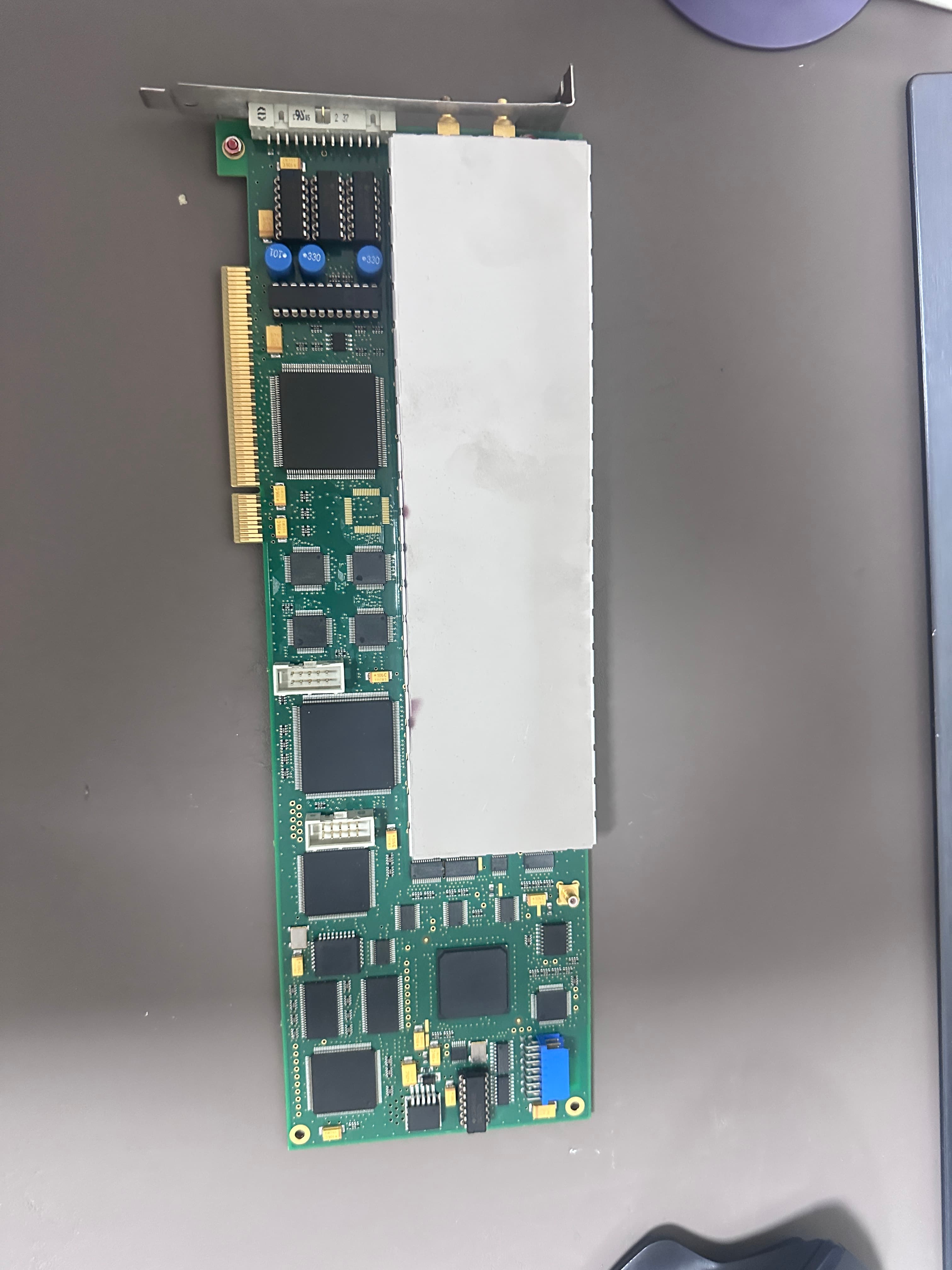

Socomate Ultrasonic PC Cards USPC 7100 LA PCI

The Socomate USPC 7100 LA PCI Card is a professional-grade Ultrasonic PC Card designed for high-end Non-Destructive Testing (NDT) and material inspection systems. This powerful PCI interface board offers superior performance, featuring an incredibly fast square wave pulser with less than 5ns fall time and a wideband receiver/amplifier covering 0.35 to 30 MHz with an impressive 105 dB dynamic range. Equipped with a 200 MHz, 10-bit A/D Converter and a precise DAC slope of ±40 dB/µs, the card delivers exceptional signal quality and near-surface resolution. The evaluation capabilities include TOF/WT resolution better than 1μm and A-scan vertical linearity of ±1%, making the USPC 7100 ideal for demanding industrial, laboratory, and acoustic evaluation tasks. Its robust design ensures reliable operation for scientific research, industrial testing, and material characterization applications.

Brand: Socomate

Series: Socomate USPC

Model: USPC 7100 PC card

Main Features:

• Square wave pulser: < 5ns fall time, 20 KHz PRF
• Excellent Near Surface Resolution
• Receiver/amplifier: 0.35 to 30 MHz Bandwidth, 105 dB Dynamic Range, Amplifier linearity ±0.5dB, Low noise < 20% FSH (105dB/WB)
• DAC: DAC Slope ±40dB/us
• Evaluation: TOF/WT Resolution better than 1μm, 200MHz A/D Converter, 10-Bits
• A-scan Display: Vertical linearity ±1%
