VMETRO PMC-FPGA03 Curtiss-Wright Processing Engine PMC Module

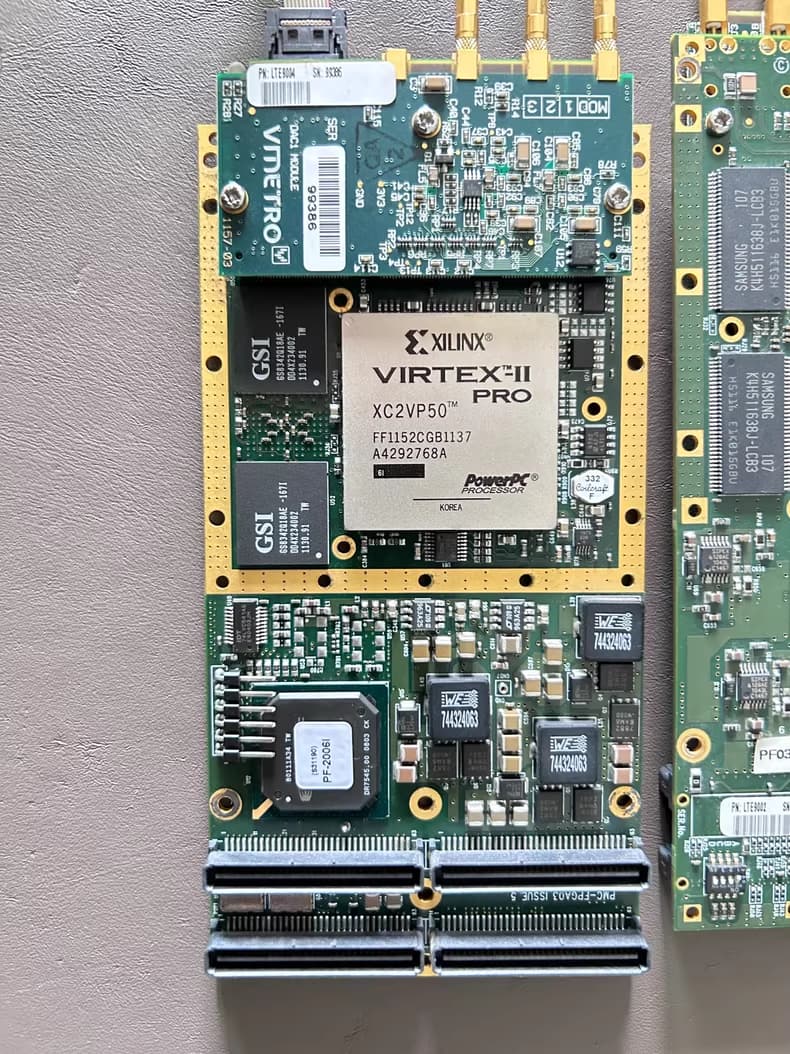

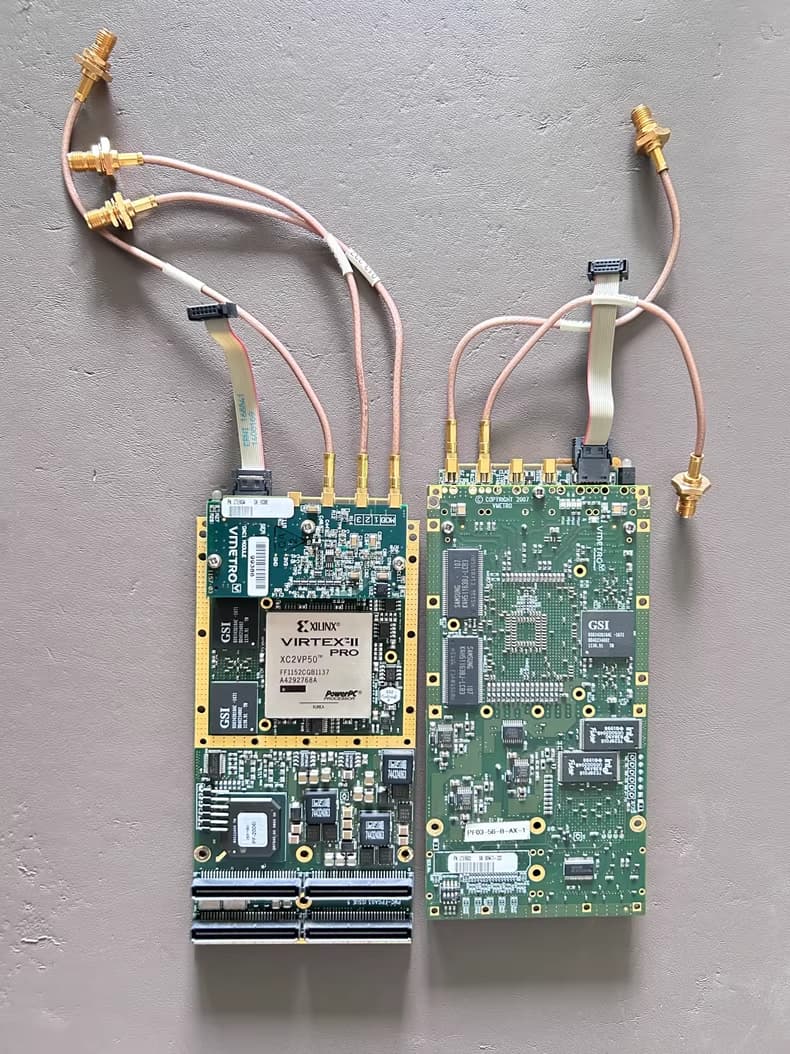

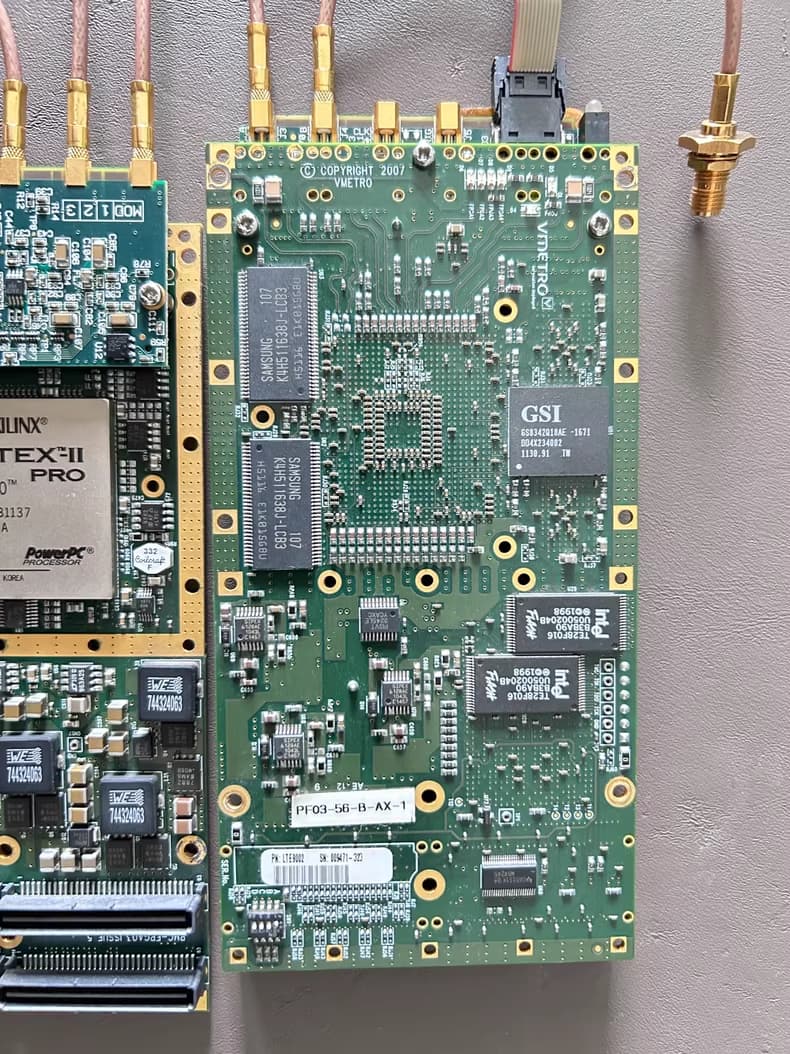

The VMETRO PMC-FPGA03 (PMC-FPGA03-5044), now under Curtiss-Wright, is a powerful Processing Engine PMC Module designed for rigorous real-time signal processing in embedded systems. This high-density module integrates a sophisticated FPGA core with cutting-edge analog I/O, including a dual-channel, 14-bit, 105 MSPS ADC and a 14-bit, 210 MSPS DAC output. As a key PMC mezzanine card, the PMC-FPGA03 is widely utilized in defense, aerospace, and high-energy physics applications for tasks requiring high-speed data acquisition, waveform generation, and highly deterministic processing, offering a robust and reliable solution for mission-critical systems worldwide.

Model

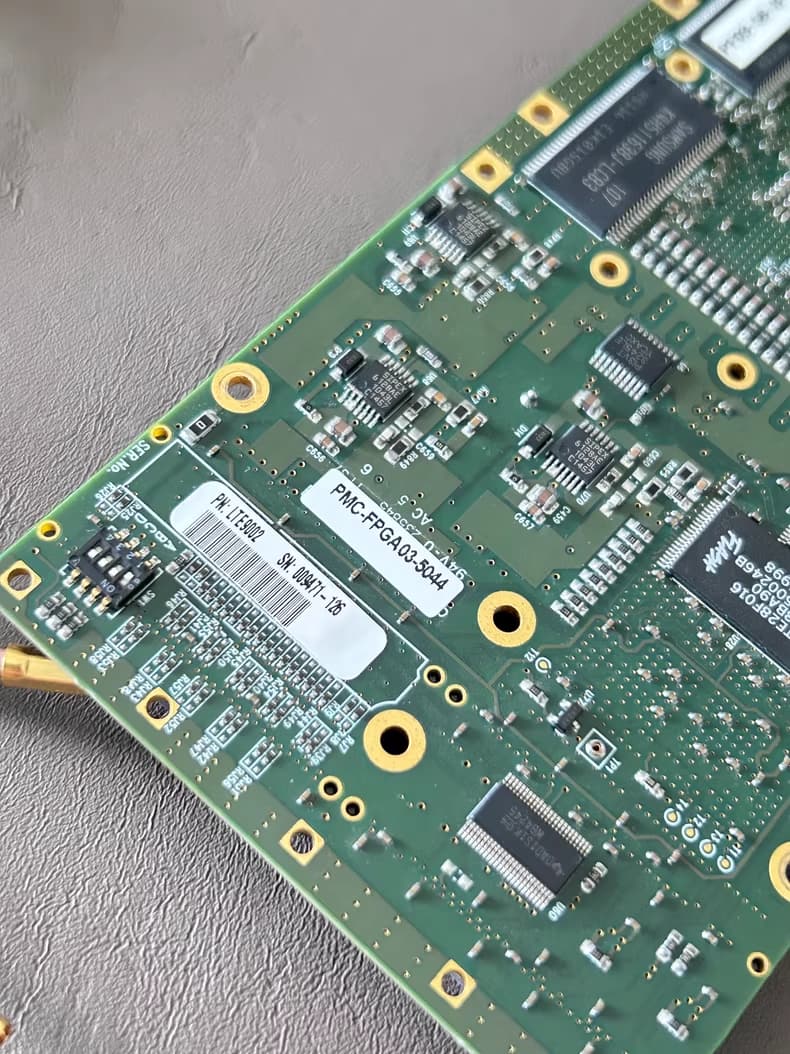

VMETRO PMC-FPGA03 (PMC-FPGA03-5044)

Modules

ADC module & DAC module

Interfaces

Four pairs of LVDS I/O

ADC (analog front-end)

Dual-channel, 105 MSPS, 14-bit

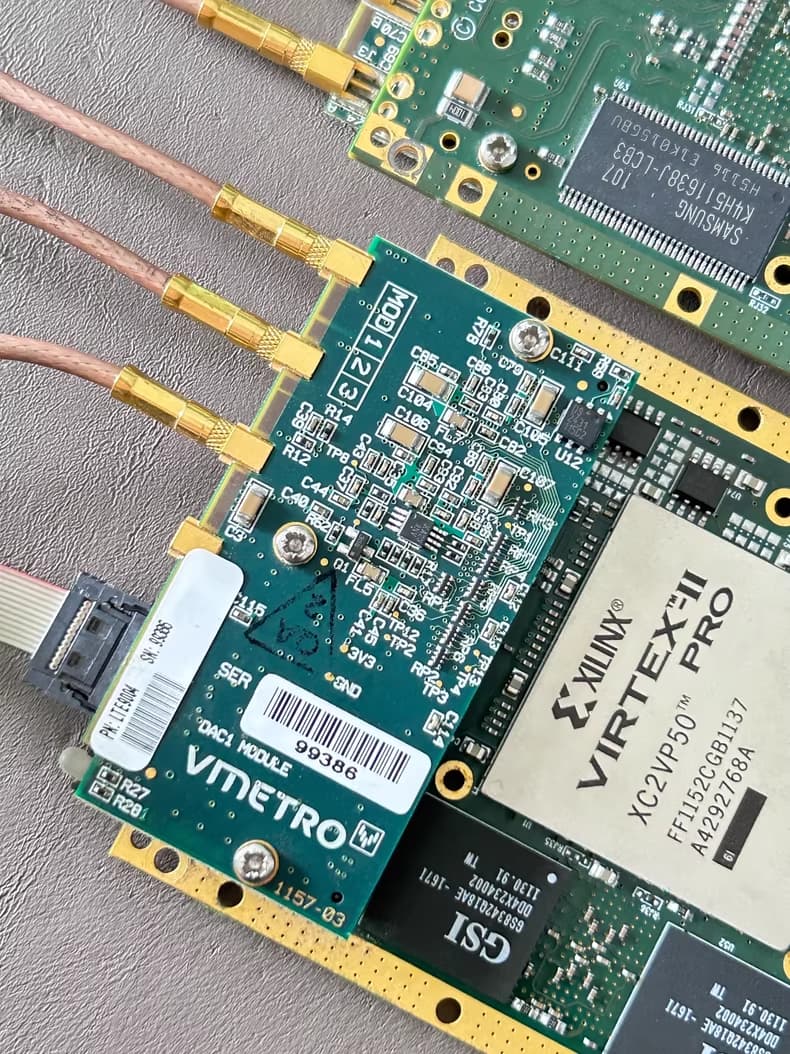

DAC (digital output)

210 MSPS, 14-bit output module

Function

ADC/DAC conversion modules for high-speed data acquisition and output
